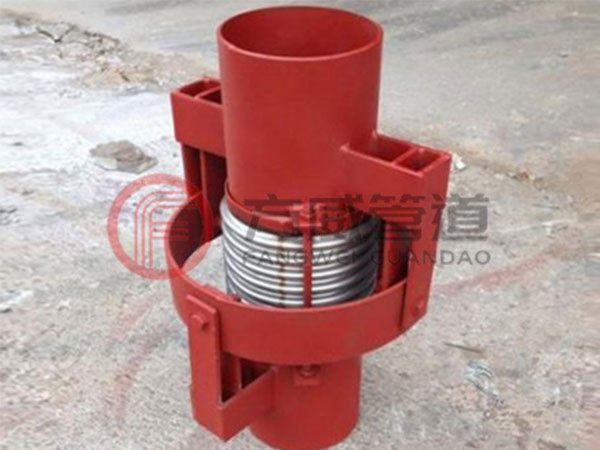

JJL型型鉸鏈波紋補償器由構成其工作主體的波紋管（一種彈元件）和端管、支架、法蘭、導管等附件組成。屬于一種補償元件。
全國統一銷售熱線：13271596708
廠家直供
品質保障
無憂配送
售后保證鉸鏈?zhǔn)窖a(bǔ)償器習慣上也叫膨脹節、伸縮節，由構成其工作主體的波紋管（一種彈性元件）和端管、支架、法蘭、導管等附件組成。對帶內套筒的補償器應注意使內套筒子的方向與介質流動方向一致，鉸鏈型補償器的鉸鏈轉動平面應與位移轉動平面一致。應對裝有補償器管路端部的次固定管架進行加固，使管路不發生移動或轉動。對用于氣體介質的補償器及其連接管路，要注意充水時是否需要增設臨時支架。
|
徑 DN |
波數 |
壓力等級 Mpa |
波紋管有效面積 cm 2 |
*外徑尺寸 mm |
接管端口尺寸 doxs mm |
總長 L mm |
||||
|
0.25 |
0.6 |
1.0 |
1.6 |
2.5 |
||||||
|
軸向補償量： mm/ 剛度 N/mm |
||||||||||
|
50 |
8 |
14/153 |
12/318 |
12/318 |
12/635 |
11/1310 |
37 |
120 |
ф57 × 3.5 |
361 |
|
16 |
27/76 |
24/158 |
24/158 |
24/318 |
23/655 |
445 |
||||
|
32 |
52/38 |
48/79 |
48/79 |
48/159 |
46/328 |
621 |
||||
|
65 |
8 |
19/213 |
18/213 |
18/213 |
18/424 |
15/814 |
55 |
159 |
ф73 × 4 |
377 |
|
12 |
30/142 |
29/142 |
27/142 |
27/283 |
25/421 |
425 |
||||
|
24 |
60/71 |
58/107 |
54/107 |
54/142 |
50/211 |
581 |
||||
|
80 |
8 |
30/179 |
30/179 |
30/358 |
29/358 |
27/650 |
81 |
162 |
ф89 × 4 |
430 |
|
10 |
54/143 |
37/143 |
37/286 |
37/286 |
32/325 |
466 |
||||
|
20 |
108/72 |
74/72 |
74/143 |
74/143 |
64/163 |
660 |
||||
|
100 |
6 |
34/138 |
34/277 |
33/417 |
33/417 |
32/817 |
121 |
180 |
ф108 × 4 |
410 |
|
10 |
56/83 |
56/166 |
56/250 |
54/250 |
50/409 |
492 |
||||
|
20 |
112/42 |
112/83 |
112/125 |
108/125 |
100/205 |
712 |
||||
|
125 |
5 |
37/136 |
36/272 |
36/408 |
35/408 |
33/801 |
180 |
221 |
ф133 × 4 |
410 |
|
9 |
66/76 |
65/151 |
65/227 |
63/227 |
60/401 |
412 |
||||
|
18 |
132/38 |
130/76 |
130/114 |
126/114 |
120/201 |
711 |
||||
|
150 |
5 |
49/100 |
49/200 |
48/300 |
45/456 |
44/845 |
257 |
245 |
ф159 × 4.5 |
433 |
|
8 |
88/63 |
78/125 |
77/188 |
71/286 |
65/423 |
518 |
||||
|
16 |
159/32 |
156/63 |
154/94 |
142/143 |
130/211 |
756 |
||||
|
200 |
4 |
58/95 |
56/193 |
56/288 |
56/480 |
55/800 |
479 |
327 |
ф219 × 6 |
475 |
|
6 |
86/63 |
85/128 |
85/192 |
84/320 |
80/927 |
553 |
||||
|
12 |
172/32 |
170/64 |
170/96 |
168/160 |
160/200 |
800 |
||||
|
250 |
4 |
75/170 |
74/343 |
63/588 |
53/930 |
50/1856 |
769 |
404 |
ф273 × 8 |
500 |
|
6 |
112/113 |
110/228 |
95/392 |
80/620 |
78/927 |
620 |
||||
|
12 |
220/57 |
220/114 |
190/196 |
160/310 |
156/464 |
984 |
||||
|
300 |
4 |
73/250 |
72/503 |
65/830 |
57/1253 |
54/2142 |
1105 |
451 |
ф325 × 8 |
584 |
|
6 |
110/167 |
109/335 |
97/553 |
85/835 |
80/1071 |
713 |
||||
|
12 |
220/84 |
218/168 |
194/277 |
170/418 |
160/536 |
1116 |
||||
|
350 |
4 |
79/263 |
78/523 |
72/840 |
64/1265 |
62/2684 |
1307 |
500 |
ф377 × 10 |
614 |
|
6 |
119/175 |
117/348 |
107/560 |
97/843 |
90/1342 |
759 |
||||
|
12 |
238/88 |
234/174 |
241/218 |
194/442 |
180/671 |
1216 |
||||
|
400 |
4 |
83/280 |
73/458 |
70/918 |
65/1373 |
63/3675 |
1611 |
537 |
ф426 × 10 |
625 |
|
6 |
125/187 |
109/305 |
102/612 |
97/915 |
90/1838 |
771 |
||||
|
12 |
250/94 |
218/153 |
204/306 |
194/458 |
180/920 |
1225 |
||||
|
450 |
4 |
98/203 |
96/405 |
82/690 |
69/2305 |
65/4350 |
1972 |
632 |
ф478 × 10 |
620 |
|
6 |
147/135 |
144/270 |
124/460 |
103/1537 |
90/2175 |
762 |
||||
|
12 |
294/68 |
288/135 |
248/230 |
206/769 |
180/1087 |
1200 |
||||
|
500 |
4 |
102/212 |
100/423 |
84/728 |
70/2452 |
65/4256 |
2445 |
699 |
ф529 × 10 |
624 |
|
6 |
153/142 |
149/282 |
126/485 |
105/1635 |
90/2128 |
766 |
||||
|
12 |
306/71 |
298/141 |
252/243 |
210/818 |
180/1064 |
1216 |
||||
|
600 |
4 |
123/265 |
121/530 |
86/1468 |
99/1740 |
95/2842 |
3534 |
806 |
ф630 × 10 |
676 |
|
6 |
185/177 |
181/353 |
148/978 |
140/1160 |
120/1420 |
848 |
||||
|
12 |
370/89 |
362/177 |
358/489 |
280/580 |
240/710 |
1382 |
||||
|
700 |
4 |
128/287 |
126/573 |
87/1625 |
85/2972 |
84/4100 |
4717 |
915 |
ф720 × 10 |
708 |
|
6 |
192/192 |
188/382 |
168/1083 |
131/1982 |
120/2050 |
882 |
||||
|
12 |
384/96 |
376/191 |
336/542 |
262/991 |
240/11025 |
1422 |
||||
